Dual-Channel Transimpedance Amplifier

Description

Key Features

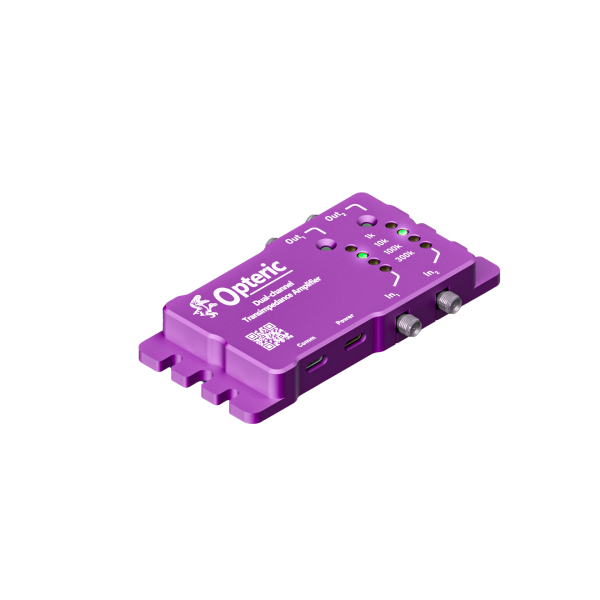

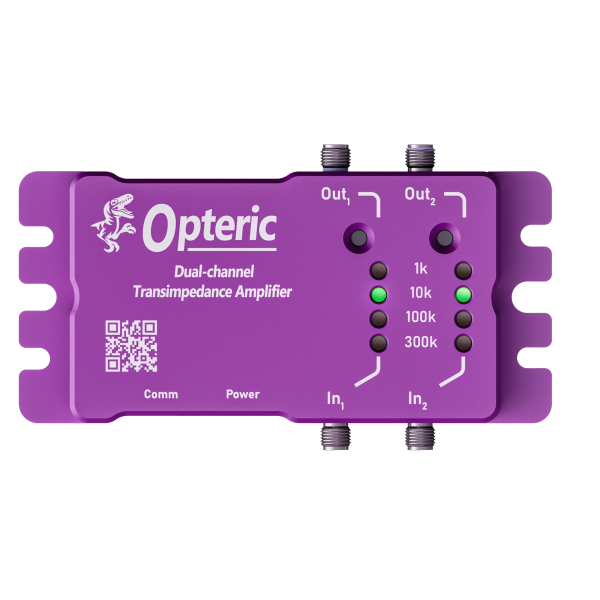

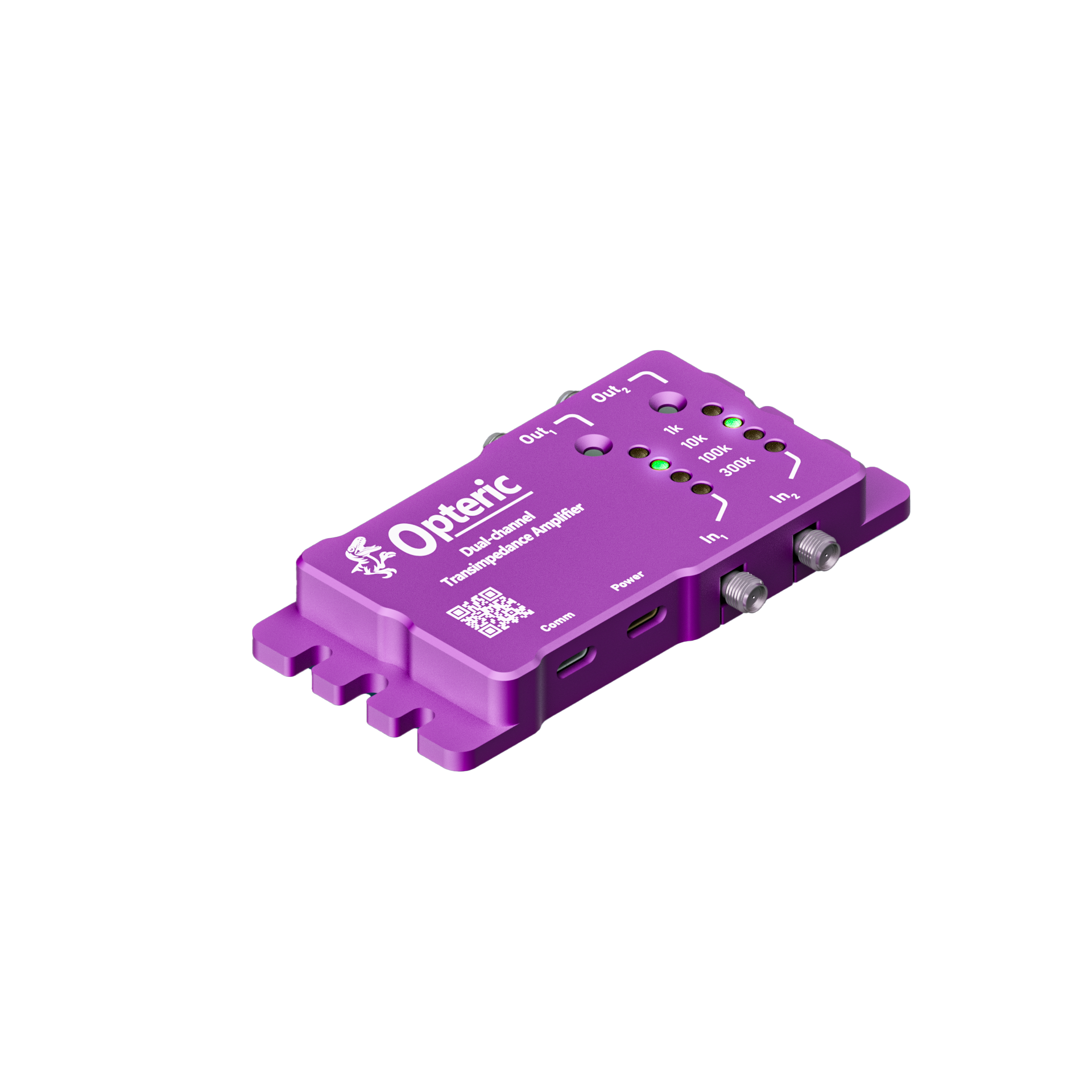

• Precision machined aluminum casing
• 2 Channels
• 52 x 110 x 14 mm, 0.12 kg
• Mounting M6, M4, ¼”-20, #8-20

    Interface:

• Signal : SMA, inputs (x2) and outputs (x2)
• Power : USB Type-C (+5 V)
• Control : Push-button (x2) for pre-defined gains
• USB Type-C, Virtual COM port (optional)
• Software : TIA control centre demo software & Command set for USB based test automation

Specifications

• Transimpedance gain : 1,10, 100, 300 kV/A (fixed gain version), 1 – 400 kV/A (programmable gain version)
• Bandwidth (@3dB cut-off) : 1.5 MHz @400 kV/A – 10.0 MHz @1 kV/A
• Noise density, input (typ.) : 2.1 pA/√Hz @400 kV/A – 123 pA/√Hz @1 kV/A
• Output range : -2.5 V to +2.5 V
• Current consumption (typ.) : 250 mA
• Operating temperature : 0 °C to 85 °C

Typical Application

• Current-to-voltage converter
• Photo multiplier tube (PMT)
• Avalanche photo diodes (APD)
• Microscopy imaging sub-system
